OIL SUCTION HOSE & OIL DISCHARGE HOSE(HEAVY DUTY) IS-8189/96 |
| Available in both smooth bore and rough bore. |
| I.D.(mm) | Tol on I.D (mm) | Bend Radius(m) | Bend Radius(m) | Bend Radius(m) | Bend Radius(m) | Bend Radius(m) | Bend Radius(m) |
| W.P 7kg/cm2g | W.P 7kg/cm2g | W.P 7kg/cm2g | W.P 10kg/cm2g | W.P 15kg/cm2g | W.P 15kg/cm2g | ||
| Rough Bore | Smooth Bore | Rough Bore | Smooth Bore | Rough Bore | Smooth Bore | ||
|
63
|
±1.50
|
0.75
|
0.65
|
0.85
|
0.7
|
-
|
-
|
|
75
|
±2.5
|
0.85
|
0.7
|
1.0
|
0.85
|
-
|
-
|
|
100
|
±3.0
|
1.1
|
1.0
|
1.25
|
1.0
|
-
|
-
|
|
150
|
±3.0
|
1.6
|
1.4
|
1.85
|
1.6
|
2.15
|
2.0
|
|
204
|
±3.0
|
2.15
|
1.85
|
2.5
|
2.15
|
3.1
|
2.8
|
|
254
|
±3.0
|
-
|
-
|
3.1
|
2.7
|
3.7
|
3.4
|
|
304
|
±3.0
|
-
|
-
|
3.7
|
3.3
|
4.0
|
4.0
|
| Type: |
The
hoses are suitable for Wielding pressure of 7 kg/crn2g, 10 kg/cm2g
and 15 kg/cm2g.
|
 |
| Application: |
For
suction, delivery and return hose for oil, gasoline, diesel and
other fuels. Also handles up to 50% Aromatic Hydrocarbons.
Vacuum: 500mm of Hg Length: Max. 20 meters. |
|

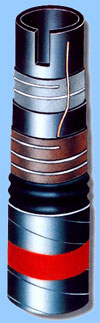

| Construction: |
TUBE:
Uniform thickness seamless synthetic rubber inner tube, resistant
to oil, gasoline, diesel.
|
|
| Reinforcement: |
Layers
of high synthetic textile impregnated with elastomeric material
with steel wire helix.
|
|
| Cover: |
Black
colors, oil weather & abrasion resistant synthetic rubber with
anti-static characteristic with red strip. Available in either plain
or corrugated.
|
|
| Electric
Conductivity: |
Anti-static
copper wire.
|
|
| Temperature: |
-42°C
to 82°C continuous service.
|
